Description

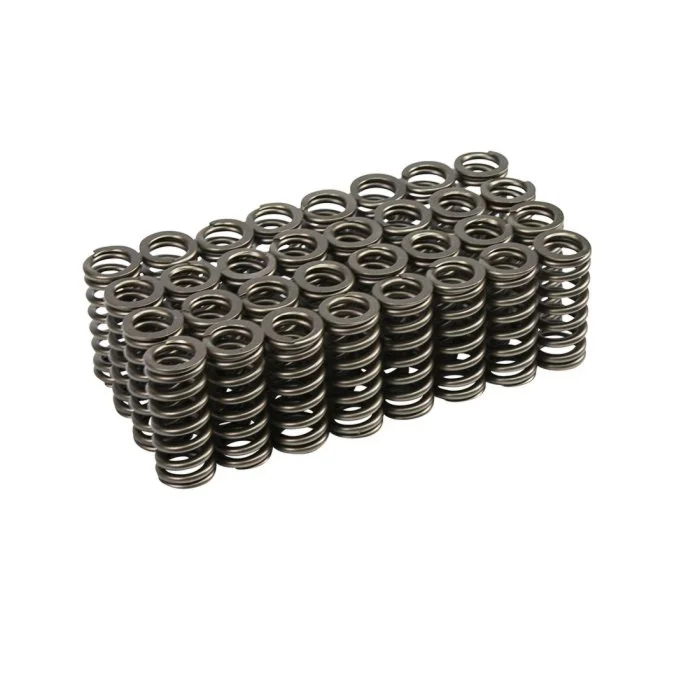

Set of 32 Valve Springs for Powerstroke 6.0/6.4COMP Cams engineered the #26124 valve springs to have increased spring rateas well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stressescreate additional dynamic control and help valve train reliability at elevated RPM and boost pressures. Springs are also available in single units (Part #26124-1) or as a kit with the valve Seals and shims (Part #26124-Kit).Available individually under 26124-1, Available in a complete kit under 26124-KIT

Bottom Inside Diameter: 0.647″

Bottom Outside Diameter: 1.01″

Coil Bind Height: 1.19

Compatible Retainers: –

Compatible Shims: 4809

Compatible Spring Seat / Seals: P/N 535

Damper: –

Installed Height: 1.77

Number of Springs: Single

Open Load: 300

Seat Pressure: 140

Spring Rate: 320

Spring Style: Straight

Top Inside Diameter: 0.647

Top Outside Diameter: 1.01

Valve Spring Series: –
