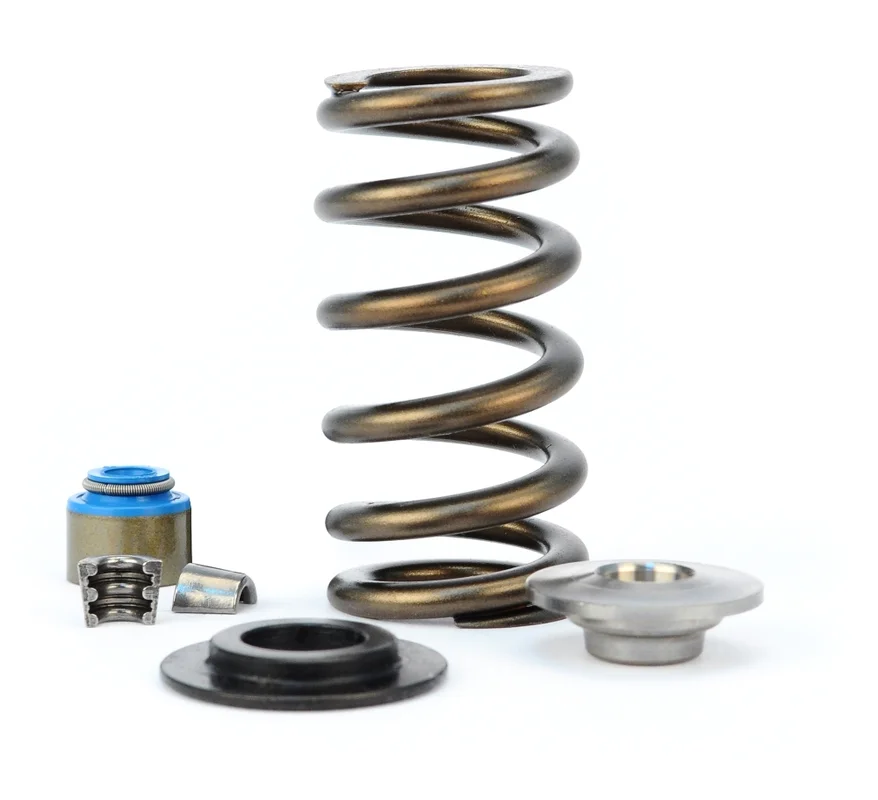

Coyote Beehive Spring Kit w/ Tool Steel Retainers.600″ Max LiftPlease note the above image does not show full spring kit. Creates higher loadhigher RPM and more lift capacity than stock parts. Complete kit includes (32) springs(32) retainers(32) seatsand (32) Seals.&#x0D

&#x0D Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design and proven modular engine track record Fits 2011-2014 and 2015-Later Ford Coyote and Boss 5.0L engines

&#x0D

&#x0D

&#x0D

&#x0D

&#x0D Max Lift Seat Load Open Load Rate Coil Bind Outer Diameter Inner Diameter

&#x0D

&#x0D .600 120 lbs @ 1.57 275 lbs @ 1.02 258 lbs/in .970 Top 1.013″ / Bottom 1.101 Top .650″ / Bottom .738

&#x0D

&#x0D

&#x0D Please note the above image does not show full spring kit.Available with Titanium retainers under 26125CTS-KIT.
