Description

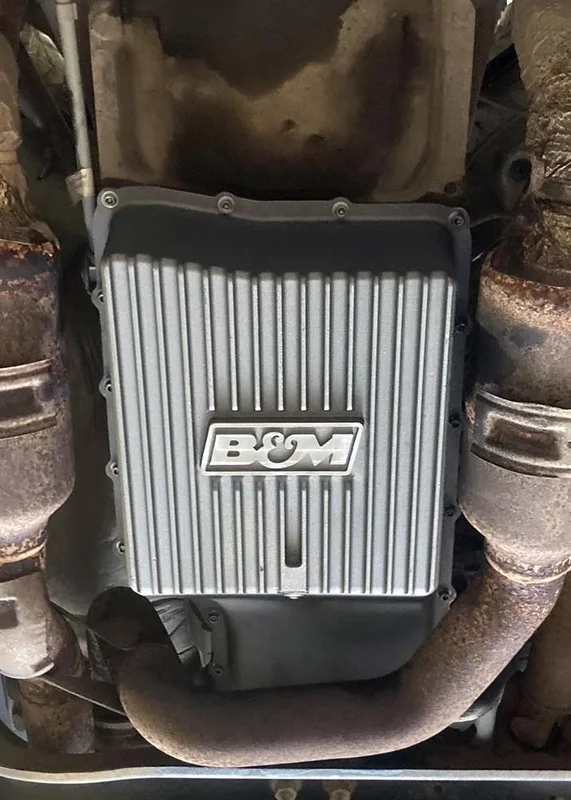

Fitment: 2011-2022 Ford F250/350 with 6R140 transmissionDrain Port with Magnetic Drain Plug for Easy ServicingDurable A356 T6 Hardened Aluminum Construction Provides Strength and Light WeightTemperature Sensor Port Provides Simple Gauge InstallationsAdditional 3.67-Quart Fluid Capacity adds Increased Cooling PropertiesFinned Design for Added Strength and CoolingIncludes Filter Extension and Hardware for an Easy InstallationNatural Finish with a Custom B&M LogoLifetime Limited WarrantyOver 65 Years of B&M QualityOur Hi-Tek deep transmission pans are constructed from A356-T6 hardened aluminum and are cast with thick internal and external fins adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.67 quarts over the stock O.E. (original equipment) pan. All these features combine to help dissipate heat quicker, netting lower transmission and fluid temperatures, prolonging transmission life. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch npt (national pipe thread) temperature sensor port for easily adding a temp gauge to monitor transmission temperatures while daily driving, towing or racing. Includes detailed instructions for easy installation.

Additional Fluid Capacity (qts): 3.67

Bolt Count: 19

Bolt/Studs Included: Yes

Capacity: 20 QT

Color: Aluminum

Color/Finish: Natural

Drain Plug Included: Yes

Drain Plug Type: Magnetic

Gasket Included: No

Gasket Or Seal Included: No

Grade Type: Performance

Material: A356.0-T6 Aluminum

Mounting Hardware Included: Yes

Oil Pan Gaskets Included: No

Temp Sensor Port: Yes

Transmission Filter Included: No

Transmission Type: Automatic

Transmission: 6R140
