Description

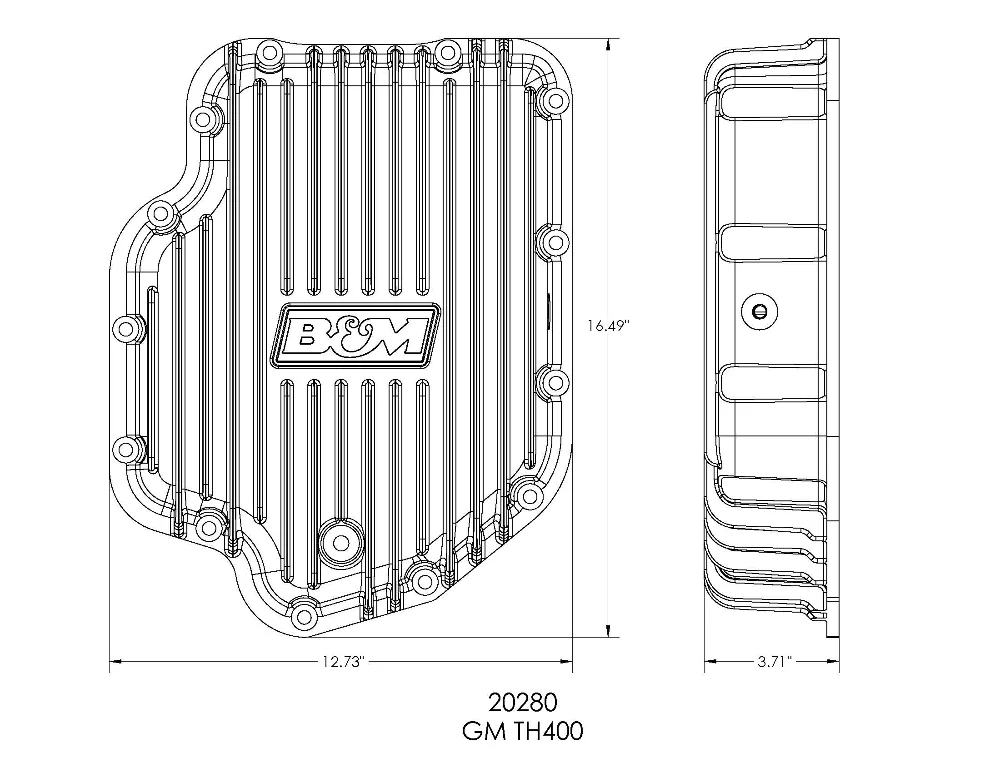

All GM Turbo-Hydramatic 400 automatic transmissions. Adds an additional 2-quarts of capacity. Does not fit Jeep CJ7 model. Does not include transmission filter.Includes Drain Port Magnetic Drain PlugIncludes Fluid Pickup Extension GasketAdds Additional 2-quart Fluid CapacityIncludes Temperature Sensor PortInternal and External fin design provides increased cooling propertiesLifetime Limited WarrantyOur Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter extension, pan gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation.

Additional Fluid Capacity (qts): 2

Capacity: 8 QT

Color: Aluminum

Drain Plug Included: Yes

Drain Plug Kit: Yes

Filter Extension Included: Yes

Filter Included: No

Gasket Configuration: One Piece

Gasket Included: Yes

Gasket Or Seal Included: Yes

Grade Type: Performance

Instructions Included: Yes

Material: Cast Aluminum

Mounting Hardware Included: Yes

Mounting Hardware: Yes

Oil Pan Gaskets Included: Yes

Style: Deep

Temperature Sensor Bung: Yes

Transmission Filter Included: No

Transmission Type: Automatic

Transmission: TH400
