Description

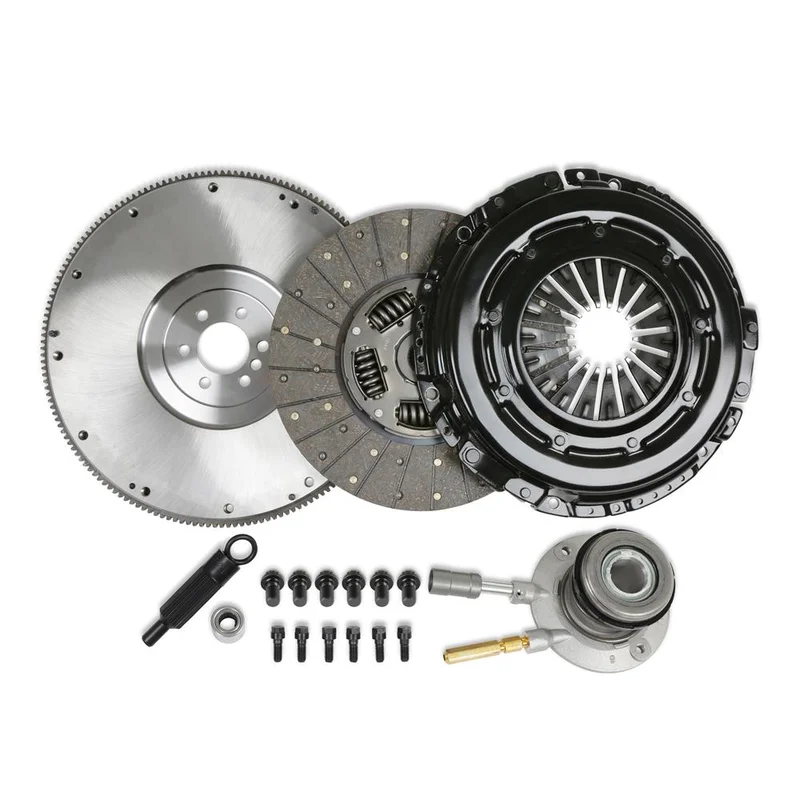

Fits GM 6 bolt LS Engines with T-56 TransmissionIncludes Pressure Plate, Disk, Flywheel, Alignment Tool, Pilot Bearing, Pressure Plate Bolts, Flywheel Bolts and Hydraulic release bearing (hydraulic release bearing to transmission bolts not included)12-inch Organic Single Disc Clutch with 1-1/8-inch 26 Spline Hub for LS Engines with 6 Bolt Crankshaft6-Bolt Billet Steel Flywheel provides strength and a fresh, new foundation for the clutchStreet/Strip Clutch Kit Provides Excellent Holding Strength with a Smooth Daily Driver Pedal FeelDesigned for Power Levels up to 550 Naturally Aspirated HorsepowerThis Kit includes all the hardware and components needed for a complete clutch install on a 6-bolt crank LS engine using a T-56 transmission. A 12-inch organic disc with a 6 spring helix sprung hub provides the superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel.

Alignment Tool Included: Yes

Cable Included: No

Disc Diameter: 12

Disc Material: Organic

Disc Style: Spring Hub

Disc Type Sprung Solid: Sprung

Engine Make: GM

Engine: GM Gen III/IV (LS)

Flywheel Bolts Included: Yes

Flywheel Material: Billet Steel

Grade Type: Performance

Grease Included: No

Hardware: Steel

Input Shaft Diameter: 1-1/8″

Input Spline Quantity: 26

Input Spline: 26

Mounting Hardware Included: Yes

New Or Remanufactured Clutch: New

PILOT BEARING: Roller

Pilot Bushing Included: Yes

Pressure Plate Bolts Included: Yes

Pressure Plate Style: Diaphragm

Release Bearing Included: Yes

RELEASE BEARING: Hydraulic

Transmission: T56 GM

Transmission: T56 Magnum GM
