Description

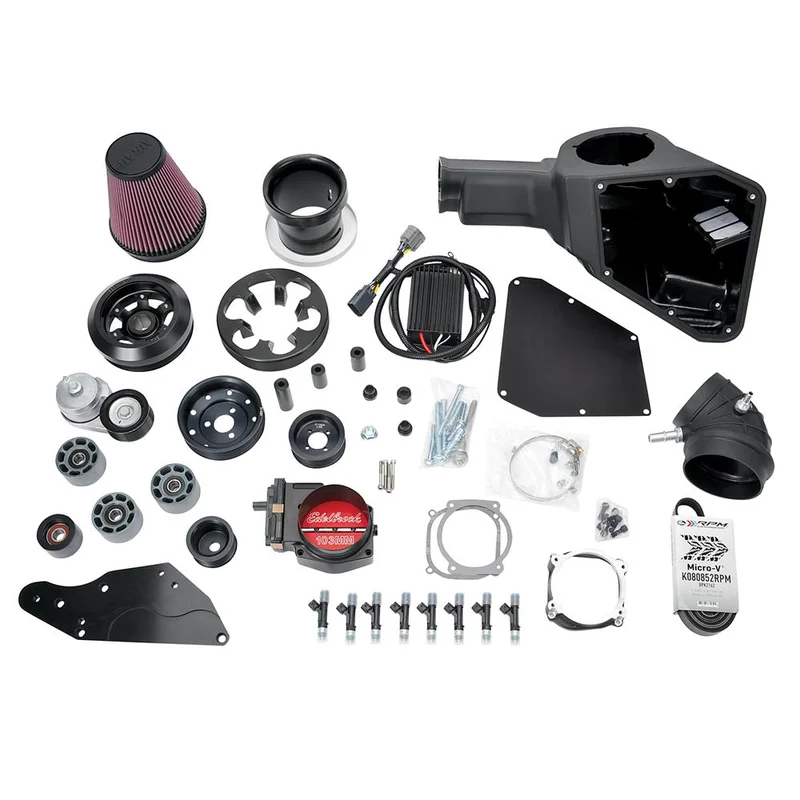

Owners of 2018-2021 Ford Mustangs who have installed an Edelbrock #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Stage II Supercharger System Upgrade Kit #15883.Owners of 2018-2021 Ford Mustangs who have installed an Edelbrock #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Stage II Supercharger System Upgrade Kit #15883. With this Stage II upgrade kityour vehicle remains emissions-legal in all 50-states while taking full advantage of the improved Gen 3 DI/PI Coyote engine. The Edelbrock Stage II Supercharger Upgrade Kit features all of the vital components required to support the additional horsepower increase that makes this our highest rated horsepower system. Included are a 103mm Throttle Body to replace the Stage I 80mma high-flow air intake systema 113mm Mass Airflow Sensor Kit with injection-molded housinglarger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Regulatorand an 8-rib belt drive to minimize slippage and maintain consistent boost pressure under full throttle.

9040: D-215-122

Air Filter Included: Yes

Calibration: Yes

Finish: Black

Fuel Injector Type: 50 4U

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: 7.75″

Maximum Boost Pressure: 13 PS

Maximum Horsepower: 686RW

Maximum Torque: 533RW 85

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Outside Pulley Diameter: 3.5 Inch

Pulley Belt Width: 8-Rib

Pulley Color: Black anodized

Pulley Groove Quantity: 8-Rib

Pulley Material: Aluminum

Quantity: Kit

Rotor Type: Eaton TVS 2650

System Type: Stage 2 – Street/Strip System

Tensioner Included: Yes

Universal Or Specific Fit: Specific
