Description

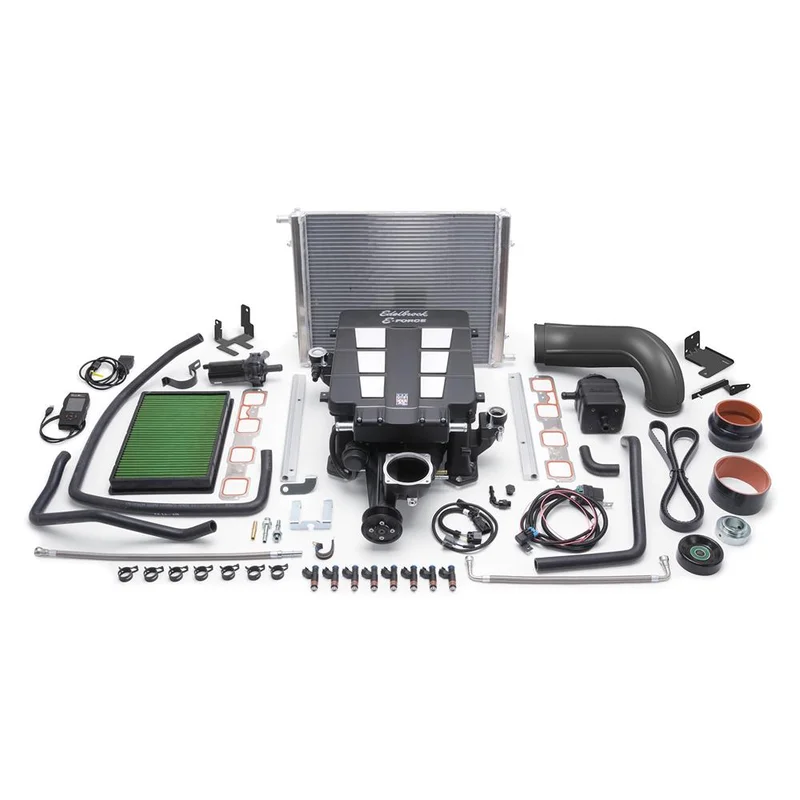

Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM 5.7 HEMI V8 delivers 439 RWHP and 444 RWTQNO HANDHELD PROGRAMMER INCLUDEDThe Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flowminimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttleimproving mileage potential. Our unique and efficient inlet configuration results in a shorterless restrictive intake path for improved airflowwithout the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

9040: D-215-96

Air Filter Included: Yes

Calibration: Yes

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Fuel Injector Type: 46 4U

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: Stock

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Maximum Boost Pressure: 14 PS

Maximum Horsepower: 439RW

Maximum Pressure Reading: 14 PS

Maximum Torque: 444RW 85

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 150 ML

Outside Pulley Diameter: 3.25 Inch

Pulley Belt Width: 6-Rib

Quantity: Kit

Rotor Type: Eaton TVS 2300

System Type: Stage 1 – Street System

Universal Or Specific Fit: Specific

Vehicle Model: Ram Truck
