Description

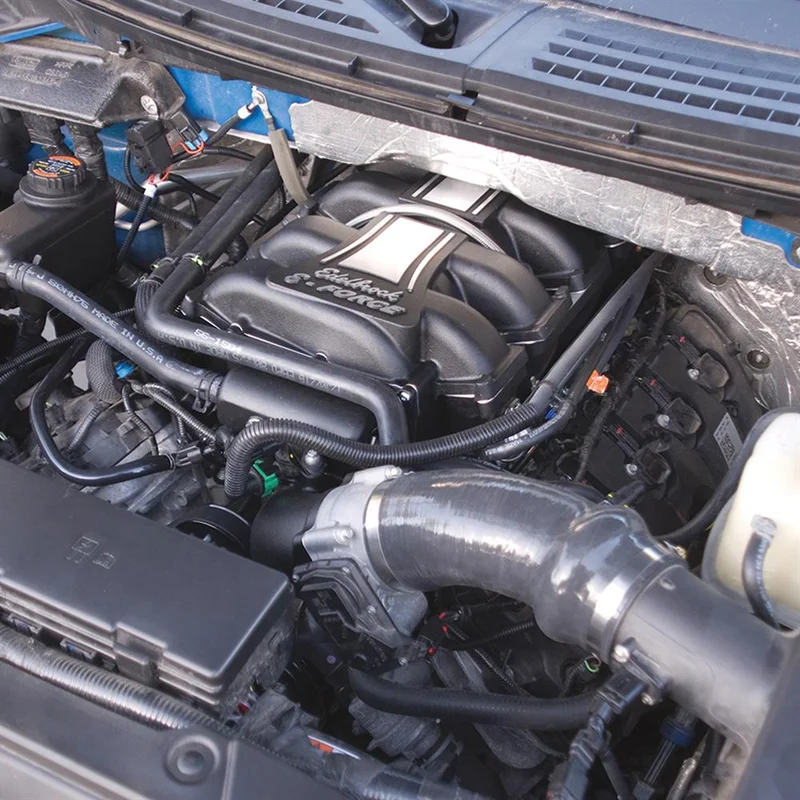

The Edelbrock Supercharger System part #1584 is for the 2011-14 Ford F-150. This kit produces 421 RWHP and 422 RWTQ.The Edelbrock supercharger Stage 1 System part #1584 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flowminimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttleimproving mileage potential. Our unique and efficient inlet configuration results in a shorterless restrictive intake path for improved airflowwithout the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1584 system is emissions legal and provides the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

9040: D-215-89

Air Filter Included: Yes

Calibration: Yes

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Fuel Injector Type: 50 4U

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: 6.67″

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Maximum Boost Pressure: 7 PS

Maximum Horsepower: 421RW

Maximum Pressure Reading: 7 PS

Maximum Torque: 422RW 85

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 150 ML

Outside Pulley Diameter: 3.5 Inch

Pulley Belt Width: 6-Rib

Quantity: Kit

Rotor Type: Eaton TVS 2300

System Type: Stage 1 – Street System

Universal Or Specific Fit: Specific

Vehicle Model: F-150
