Description

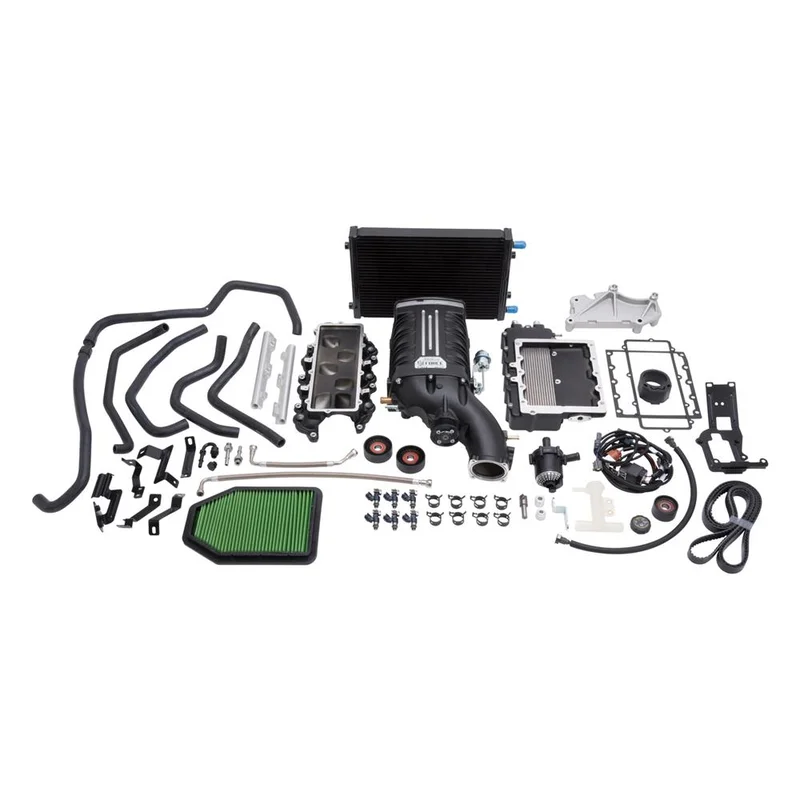

Jeep Wrangler 3.6L V6 2015-18 Pentastar SuperchargerThe Edelbrock Supercharger System #1528 for your 2015-18 Wrangler delivers 317 RWHP and 277 RWTQ for a manual and 303 RWHP and 262 RWTQ for an automatic. This Supercharger is exclusively for the Pentastar 3.6L V6 Engine featuring a unique design with minimal components make it possible to fit under the stock hood. The core of each system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flowminimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttleimproving mileage potential. Our unique and efficient inlet configuration results in a shorterless restrictive intake path that for improved airflowwithout the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Part #1528 will require the ECM and TCM to be sent into Edelbrock for modificationno handheld programmer is included with these systems. This is an 8-10 day process/waiting period from the time they are received.

9040: D-215-118

Air Filter Included: Yes

Calibration: Yes

Center Housing Cooling Type: Intercooler

Finish: Black Powder Coated

Fuel Injector Type: 42 4U

Gasket Or Seal Included: Yes

Harmonic Balancer Diameter: 6.1″

Hose Included: Yes

Housing Material: Cast Aluminum

Internal Step Up: Yes

Maximum Boost Pressure: 8 PS

Maximum Horsepower: 317RW (Manual Trans)/285RW (Auto Trans)

Maximum Pressure Reading: 8 PS

Maximum Torque: 277RW (Manual Trans)/235RW (Auto Trans)

Mounting Bracket Included: Yes

Mounting Hardware Included: Yes

Oil Capacity: 125 ML

Outside Pulley Diameter: 2.625 Inch

Pulley Belt Width: 6-Rib

Quantity: Kit

Rotor Type: Eaton TVS 1320

System Type: Stage 1 – Street System

Universal Or Specific Fit: Specific

Vehicle Model: Wrangler

With Stock Tires

With Stock Tires 85
