Description

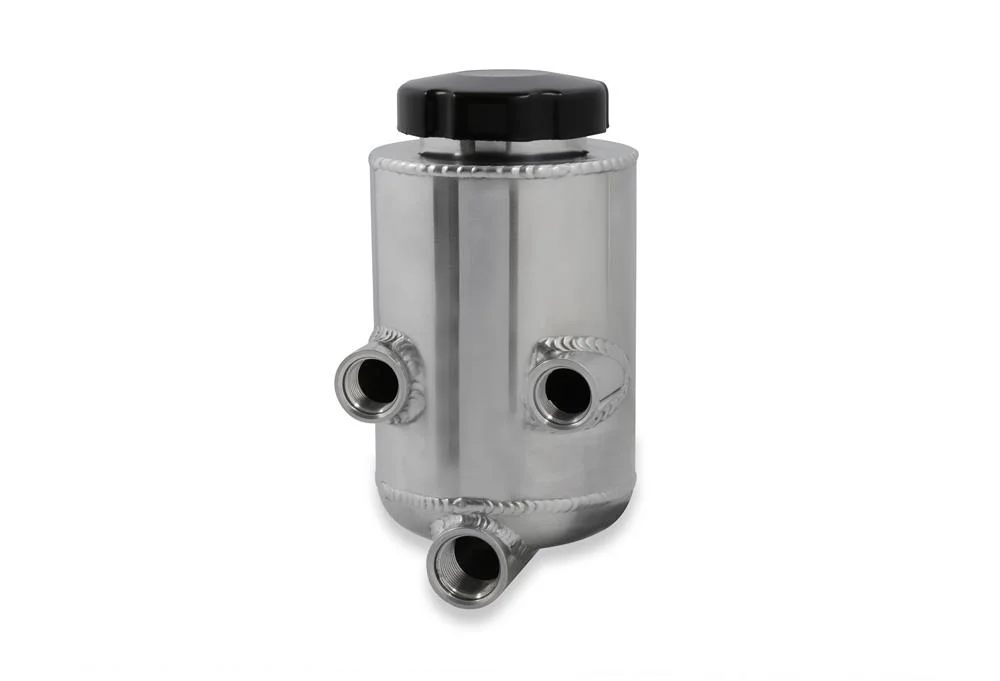

Universal – Polished Aluminum for Custom Racing ApplicationsAluminum ConstructionDual inlet Ports Support Hydro-Boost Brake Systems – Plumbing Solution with this Style Brakes when Used with Earls Pump AdaptersFluid Baffle with Air Separator Built Inside Reservoir – Reduces Foaming and Bubbles in Power Steering Fluid for Improved Steering PerformancePort Sizes: (2) -8 ORB Ports on Top (Inlets) (1) -10 ORB Port on the Bottom (Outlet)Includes Fittings: (2) -6 AN Male Flare to -8 AN ORB, (1) -10 AN Male Flare to -10 AN ORB, and (1) -8 AN Port PlugVented Cap – Allows Excess Pressure to be ReleasedUniversal Design – Fabricate Bracket or Use Clamps for MountingDimensions: Height 6.22″, Width 3.63 – See DrawingHolley’s remote mounted power steering reservoirs are ideal for applications that can not fit a pump mounted reservoir.These lightweight aluminum reservoirs have an internal baffle and air separator to keep the fluid from getting foamy or overflowing.Choose from two styles of reservoirs – Use 198-211 (polished aluminum finish) for custom racing applications (fabricate mount or use clamps for mounting), or 198-212 has a black finish, and includes mounting bracket. Reservoirs include AN fittings.The dual inlet ports support the plumbing required for Hydro-Boost brake systems.The factory style plastic pump-mounted power steering reservoir does not have the extra inlet port that is required for Hydro-Boost.These remote reservoirs when used with Earls power steering pump adapters (PS0001ERL, PS0002ERL, PS003ERL, PS0004ERL) eliminate the plastic reservoir allow easy plumbing for the outlet from the Hydro-Boost to the reservoir.If you don’t have a Hydro-boost brake system, install the included AN plug on the extra inlet port.

Adapter AN Size ( A ): 6 AN MALE

Adapter AN Size ( C ): 10 AN MALE

Adapter Port Size ( B ): 3/4-16 (AN8)

Adapter Port Size ( C ): 7/8-14 (AN10)

Adapter Port Size (A): 3/4-16 (AN8)

Cap Included: Yes

Color: Polished

Finish: Polished aluminum

Fittings Included: Yes

Grade Type: Performance

Height: 6.22″

Material: 6061-T6 Aluminum

Mounting Bracket Included: No

Mounting Hardware Included: Yes

Remote Mounted: Yes

Width: 3.63 Inch
