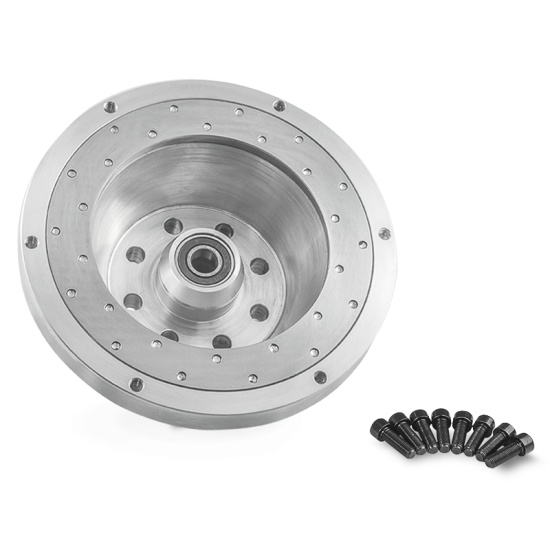

PMC custom flywheel (single mass lightweight flywheel) forToyota JZ 1JZ 2JZ engine – manual BMW gearbox (single disc)

The solution gives an opportunity to use very durable BMW gearbox. Great for use in Motorsport.

The flywheel is equipped with a spigot bearing, so you don’t have to use an extension for an input shaft! All of our flywheels are designed to work with the original flexplate, thanks to the fact you can easily mount the original starter.

The kit includes:

Custom Lightweight Flywheel

All bolts included

Toyotaengine list:

1JZ-GE / 1JZ-GTE / 1JZ-FSE

2JZ-GE / 2JZ-GTE / 2JZ-FSE

BMW manual gearboxes list:

E46 M3 6-speed Getrag 420 226.0.0440.97 / E36 M3 Getrag 420 226.0.0161.91

BMW M57 Diesel (5 speed) GS5-39DZ e39 530D 525D, e46 330D 1434256 ZF 1065401011

Matching clutch kit:

Titon 66-302XX (twin disc) STEP

Tilton 66-003XX (triple disc) STEP

Required shortening of Oil Dipstick Guide tube/guide sleeve Tube OEM 23117501714

Required Clutch Pedal Master Cylinder adjustment

Quality confirmed by ISO certificate

This Custom Flywheel requires the PMC gearbox adapter plate to connect the engine and gearbox!

PMC Custom Flywheel is designed, produced and tested in EU.

The top quality is assured by use certified the EU materials, CNC machining park and high technology measuring arms in the designing process.

Specifikation

Bilmärke	Toyota
Motorkod	1JZ
Motorkod	2JZ
