Description
Built for the demands of today’s engines, Sealed Power(R) parts deliver the dependability that engine professionals trust. Designed to help restore engine performance, Sealed Power application-specific components help ensure the job is done right the first time… because downtime is not an option.
Assembly Lubricant Included: No
Compression Height: 2.815″
Cylinder Bore Diameter: 102.00 mm
Grade Type: Premium
Head Illustration: 228

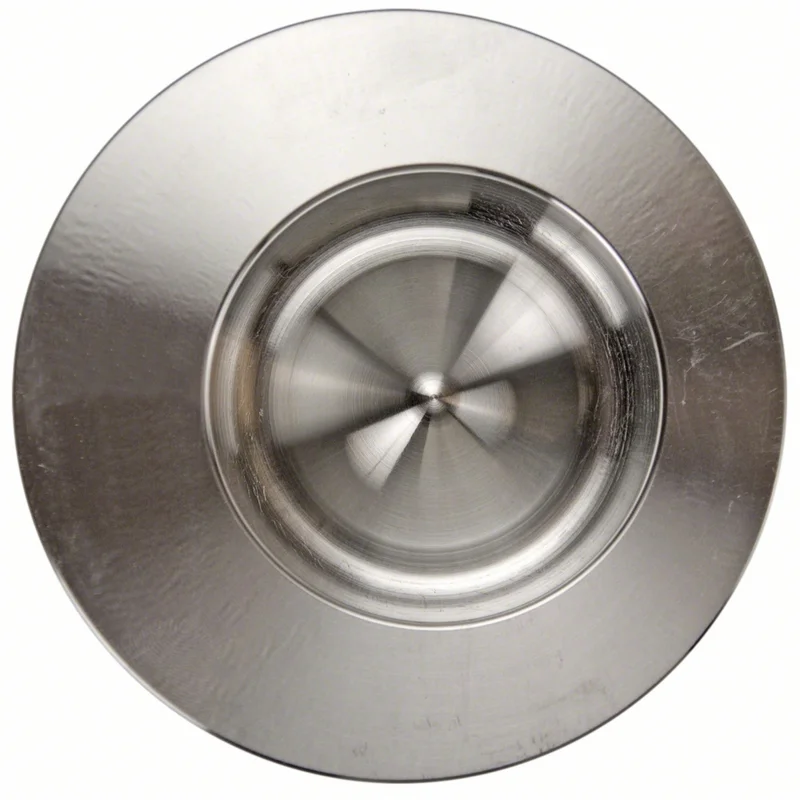

Head Type: Recessed Head .700 deep x 2.430 dia. – 17.5: 1 C.R.
Minimum Clearance: 0.005 @ .470 from bottom of skirt
Oil Ring Thickness: 4.00 MM
Oversized Amount: 0.50 MM
Oversized: Yes
Pin Type: F
Piston Head Type: Bowl
Piston Material: Cast Aluminum
Piston Pin Outside Diameter: 1.575 Inch
Repl. O.E. No. 3907163
Second Compression Ring Thickness: 2.36 MM
Top Compression Ring Thickness: 3.00 MM
