Description

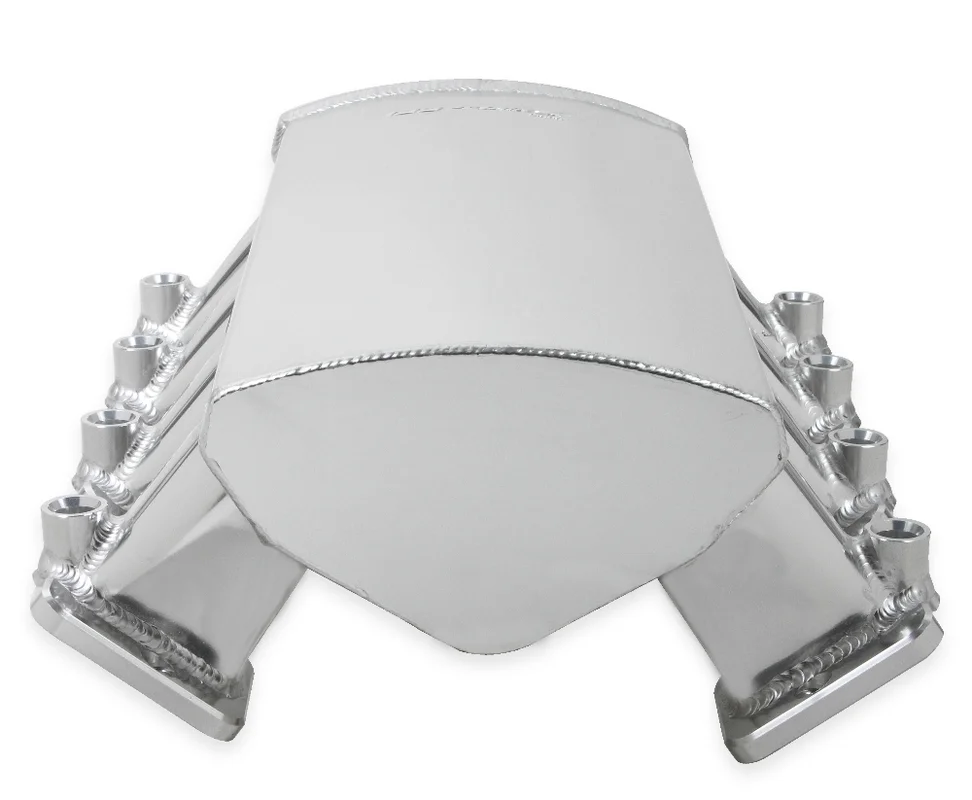

Sniper EFI Low Profile Sheet Metal Fabricated Intake ManifoldEach manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm 102mm are availableHolley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***Designed for use with EV1 style fuel injectors.

Basic Operating RPM Range: 1800-6400 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: No

CNC Ported: No

Color: Polished

Construction: Fabricated

Cylinder Head Port Shape: Rectangle

Deck Height: 9.24 Inch

EGR Port: No

Engine: GM LS3/L92

Flange Style: N/A

Front Maximum Height: 6.077 Inch

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Fuel System Type: EFI

Gasket Or Seal Included: Yes

Grade Type: Performance

Injector Style Provision: EV1

Intake Port Gasket(s) Included: Yes

Manifold Type: Fabricated

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Silver

Rear Maximum Height: 5.29 Inch

Removable Runners: No

Removable Top/Lid: No

Runner Length: 4.252″ (108mm)

Single Or Dual Plane Type: Single

Style: EFI

Throttle Body Bore Diameter: 92 MM

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 92mm

Vacuum Ports: (3) 1/8″-28BSPT & (1) 1/4″-19BSPT
