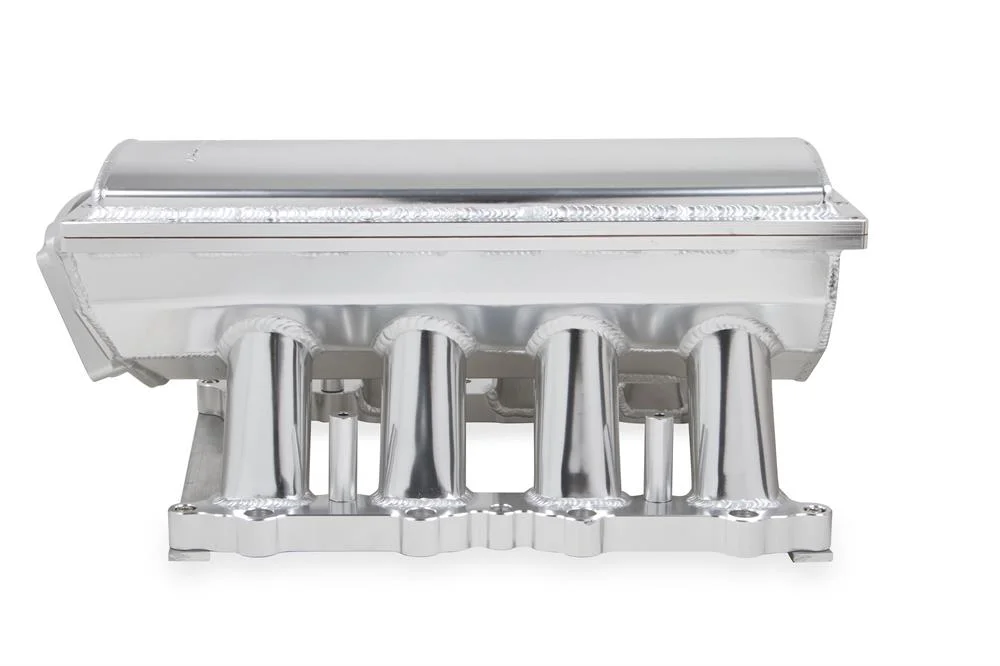

Sniper EFI Fabricated Race Intake Manifold – 2011-14 Ford 5.0L Coyote – SilverHolley Sniper EFI Fabricated Manifolds continues to push the aftermarket by introducing our latest Race Series line of intakes for GM LS 1/2/6 and Ford Coyote 5.0L engine platforms. Feedback from racers and install shops, related to our original line of EFI intakes launched in 2015, were critical in the development of these Race Series manifolds. These Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold.Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.*** The Sniper EFI Fabricated Manifold for 11-14 Ford Coyote 5.0L engines require the use of (EV6 USCAR) style fuel injectors. ***

Basic Operating RPM Range: 2100-8200 RPM

Carburetor Flange: N/A

Carburetor Quantity: N/A

Carburetor Studs Included: No

CNC Ported: No

Color: Polished

Construction: Fabricated

Cylinder Head Port Shape: Oval with dimple

Deck Height: 8.937 Inch

EGR Port: No

Engine: Ford Coyote

Flange Style: N/A

Front Maximum Height: 9.5″

Fuel Injectors Included: No

Fuel Rail(s) Included: Yes

Gasket Or Seal Included: Yes

Grade Type: Performance

Injector Style Provision: EV6 USCAR

Intake Port Gasket(s) Included: Yes

Manifold Type: Fabricated

Material: Aluminum

Nitrous Bung(s) Included: No

Plenum Finish: Polished

Rear Maximum Height: 8.858 Inch

Removable Runners: No

Removable Top/Lid: Yes

Runner Length: 5.709″ (145mm)

Single Or Dual Plane Type: Single Plane

Style: EFI

Throttle Body Bore Diameter: 90 MM

Throttle Body Gasket Included: Yes

Throttle Body Included: No

Throttle Bore: 90mm

Vacuum Ports: (3) 1/8″-28BSPT & (1) 1/4″-19BSPT
