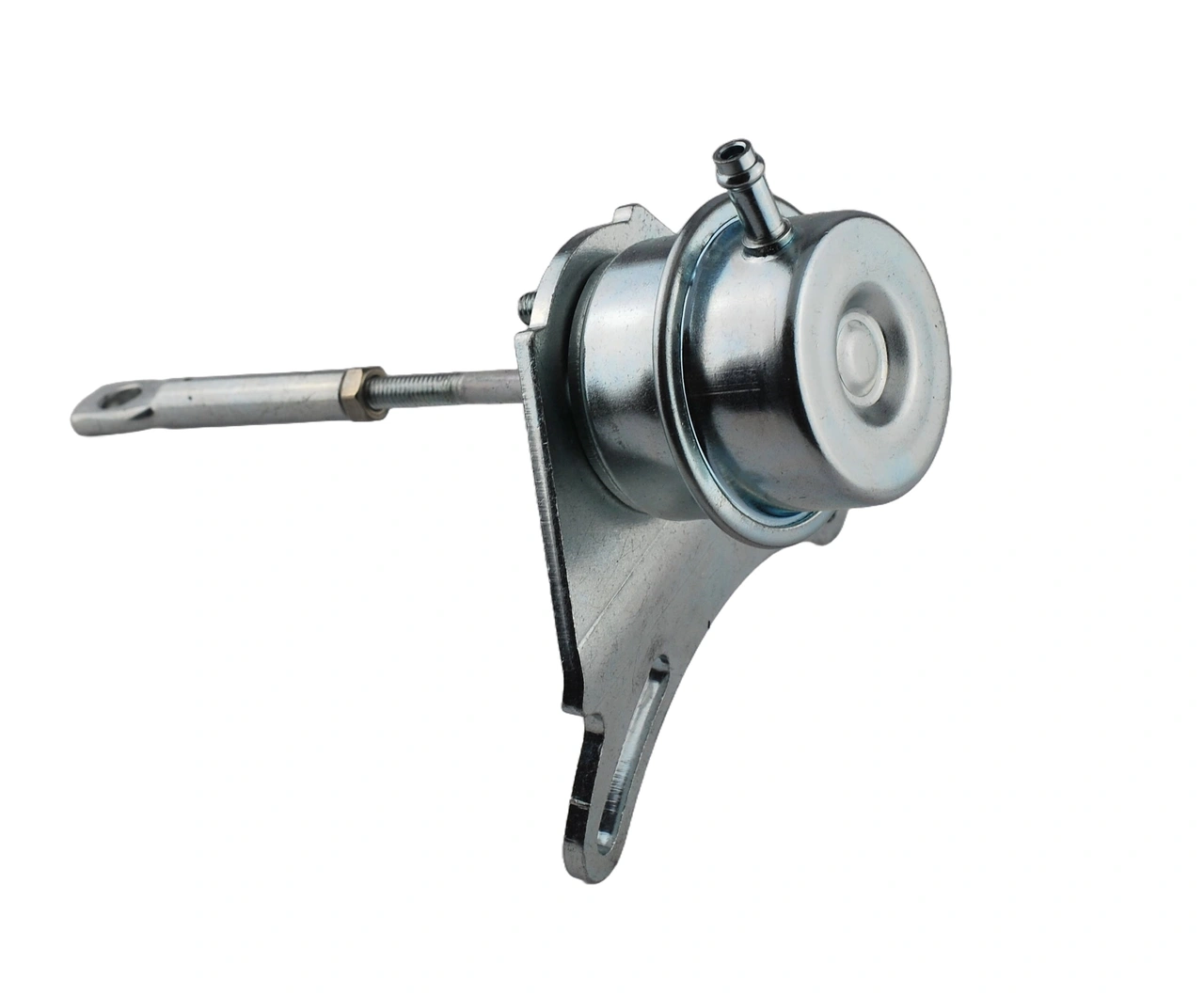

Description

WG arm length: 88mm

Thread length: 40mm

Clevis length: 65mm

Adjustable length: ~120-145mm

Stroke: 20mm

Opening pressure: ~0,7bar / 10PSI

Fully open pressure: ~2,4bar / 35PSI

Mounting bolt CC: 35mm

Mounting bolt hole: 6mm

Assembly instructions:

Mount the wastegate on the turbo unit and adjust it so there is at least a 2mm bias.

Using a pressure gauge: Check when the wastegate arm starts to open.

Adjust the wastegate with more pre-tension (3mm+) if you want a higher opening pressure.

Adjust until you get the desired opening pressure.

Note that measured opening pressure may vary during use due to exhaust pulses, exhaust pressure, back pressure and heat.
