Description

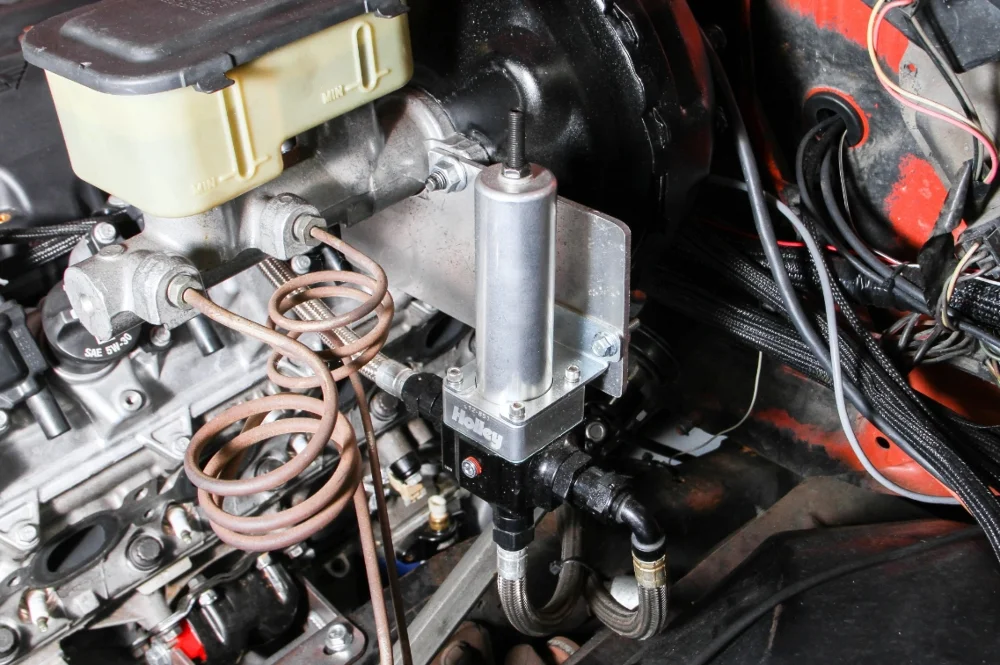

Adjustable 40 to 100 PSI Boost Reference 1:14 port designBillet materialadjustableReturn style40-100 PSI pressure range(1) 10 AN and (4) 8 AN O-ring inlet/outlet size10 AN O-ring return size1/8″ NPT gauge port with 1/8″ NPT vaccum/boost reference portDesigned for use with the Holley VR1 and VR2 Series Brushless in-line fuel pumpsCompatible with gasoline, methanol, and E85Includes a -4 AN fitting if being used in a boosted applicationThe Holley VR Series billet fuel pressure regulators are part of the VR1 and VR2 Series brushless fuel systems product line. These regulators can support 3000+ horsepower engines that require high volumes of fuel flow. Both EFI and carbureted versions can be referenced on a 1:1 ratio. They are precision machined from 6061-T6 billet aluminum for strength and durability and feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Offered in 2 port and 4 port versions for carbureted or EFI pressures, Holley has the regulator to cover your needs!

Adjustable: Yes

Color: Black Anodized

Fuel Pressure Range: 40-100

Fuel System Type: EFI

Fuel System: EFI

Fuel Type: Diesel, Gasoline

Gauge Port: Yes

Grade Type: Performance

Inlet Port Diameter: -10AN

Inlet Quantity: One

Inlet Type: ORB

Material: Aluminum

Maximum Pressure Reading: 100 PS

Mounting Hardware Included: No

Mounting Type: Bolt On

Outlet Port Diameter: -8AN

Outlet Quantity: 4

Outlet Type: ORB

Port Quantity: 7

Pressure Range: 40-100 PSI

Return Size: 8 AN O-Ring

Style: EFI
