Description

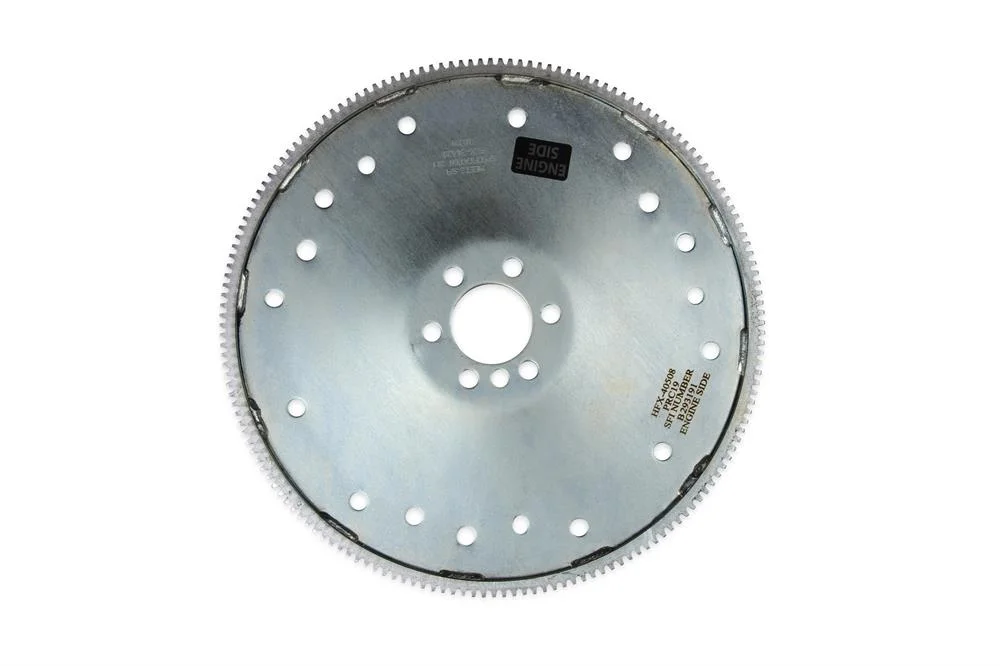

Hays Steel SFI Certified Flexplate – GM LS EnginesHays SFI Approved heavy duty flexplates for are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the 4mm thick center plate utilized on a Hays flexplate handles the brute force. These flexplates are supplied with a precision double welded ring gear and feature multiple engine and transmission bolt patterns. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.IS NOT direct replacement for ”long crank” LS engines. (1999-2000 6.0L)

Application: Chevrolet

Bolt Circle: 3 x 10.75 inch

Bolt Circle: 3 x 11.00 inch

Bolt Circle: 3 x 11.5 inch

Bolt Circle: 6 x 11.5 inch

Bolt Pattern: GM 10-1/2″

Bolt Pattern: GM 10-3/4″

Bolt Pattern: GM 11-1/2″

Bolt Pattern: GM 11-1/8″

Centerplate Thickness: 4.00 mm

Engine Balance: Internal

Engine: GM Gen III/IV (LS)

Finish: Silver

Material: Steel

Number of Teeth: 168

SFI Approved: Yes

SFI Certification: 29.1

Style: Quick Launch

Transmission: 4L60E/4L65E

Transmission: 4L80E/4L85E

Transmission: 700R4

Transmission: Category

Transmission: TH350

Transmission: TH400
