Description

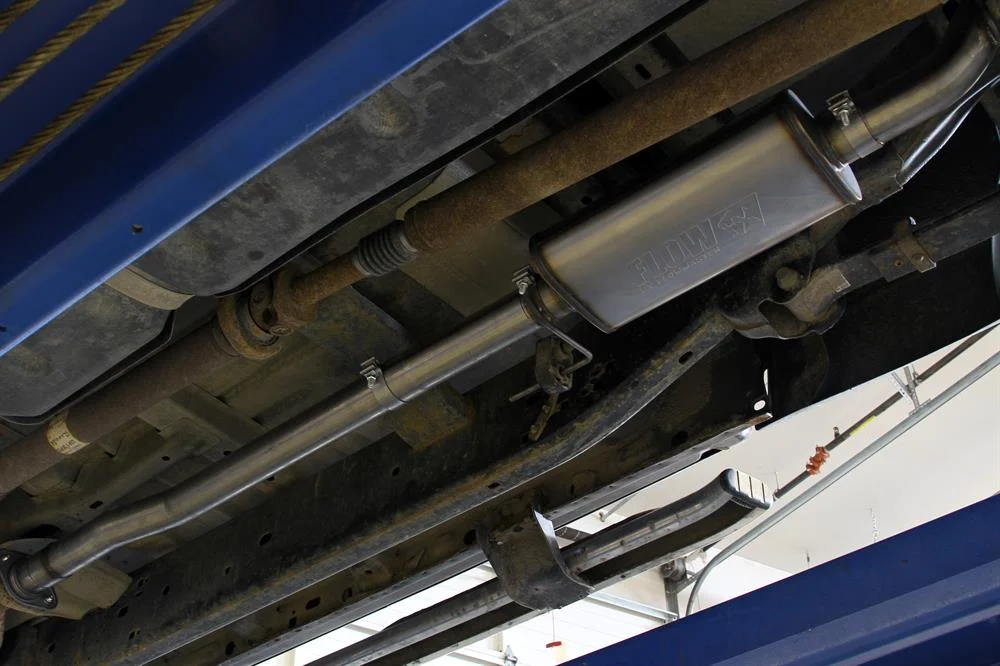

Flowmaster Flow FX Cat-Back Exhaust SystemIntroducing the Flow FX Cat-back exhaust system for the 2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L and 5.4L engines. This stainless steel performance single exhaust system bolts up to the factory catalytic converter flange with a large 3-inch mandrel-bent tubing flowing into the ”straight-through” Flow FX performance muffler. The Flow FX muffler creates a deep powerful sound outside the vehicle with a moderate tone inside the cab. The mandrel-bent tailpipe exits behind the passenger side rear tire and is finished off with a large 4.50-inch black ceramic coated exhaust tip embossed with the Flowmaster name. The system utilizes the factory hanger locations and connections and includes all necessary parts, hardware and detailed instructions for an easy at home installation. Note: Fits 2/4 wheel drive and all wheelbases.2009-2014 Ford F-150 with 3.5L Ecoboost, 4.6L, 5.0L, 5.4L engines, 2/4 wheel drive and all wheelbases.

Catalytic Converter Included: No

Catalytic Converter Quantity: 0

Clamping Type: Flat Band

Clamps Included: Yes

Exhaust Series:Flow FX

Exhaust Tip Color: Black

Exhaust Tip Connection: Clamp-On

Exhaust Tip Cut: Angled

Exhaust Tip Diameter: 4.50″

Exhaust Tip Edge: Rolled Edge Angle Cut

Exhaust Tip Finish: Black Ceramic Coating

Exhaust Tip Intercooled: No

Exhaust Tip Length: 11.00″

Exhaust Tip Material: 304 Stainless Steel

Exhaust Tip Quantity: 1

Exhaust Tip Resonated: No

Exhaust Tip Shape: Round

Exhaust Tip Wall: Single Wall

Exit Style: Single Out Side

Finish: Natural

Gasket Or Seal Included: No

Grade Type: Performance

Hangers Included: Yes

Heat Shield Included: No

Inlet Type: Flanged

Main Piping Diameter: 3.00″

Mount Type: Uses Factory Hangers

Mounting Bracket Included: No

Muffler Body Height: 4.00 Inch

Muffler Body Length: 18.00 Inch

Muffler Body Material: 409 Stainless Steel

Muffler Body Shape: Oval

Muffler Body Width: 9.00 Inch

Muffler Finish: Natural

Muffler Flanged Inlet: No

Muffler Flanged Outlet: No

Muffler Included: Yes

Muffler Inlet Connection: Slip-Fit

Muffler Inlet Inside Diameter: 3.00 Inch

Muffler Inlet Outside Diameter: 3.13 Inch

Muffler Outlet Connection: Slip-Fit

Muffler Outlet Quantity: 1

Muffler Quantity: 1

Muffler Series:Flow FX

Muffler Type: Absorption

Pipe Color: Silver

Pipe Material: 409 Stainless Steel

Sound Level: Moderate

Spring Bolt Kit Included: No

Tail Pipe Outlet Outside Diameter: 3.00 Inch

Tail Pipe Quantity: 1

Tail Pipe Quantity: Single

Tail Pipe Tapered Outlet: No

Tip Logo: Embossed

Type: Cat-Back

Valve Included: No

Valve Type: Not Applicable
