Description

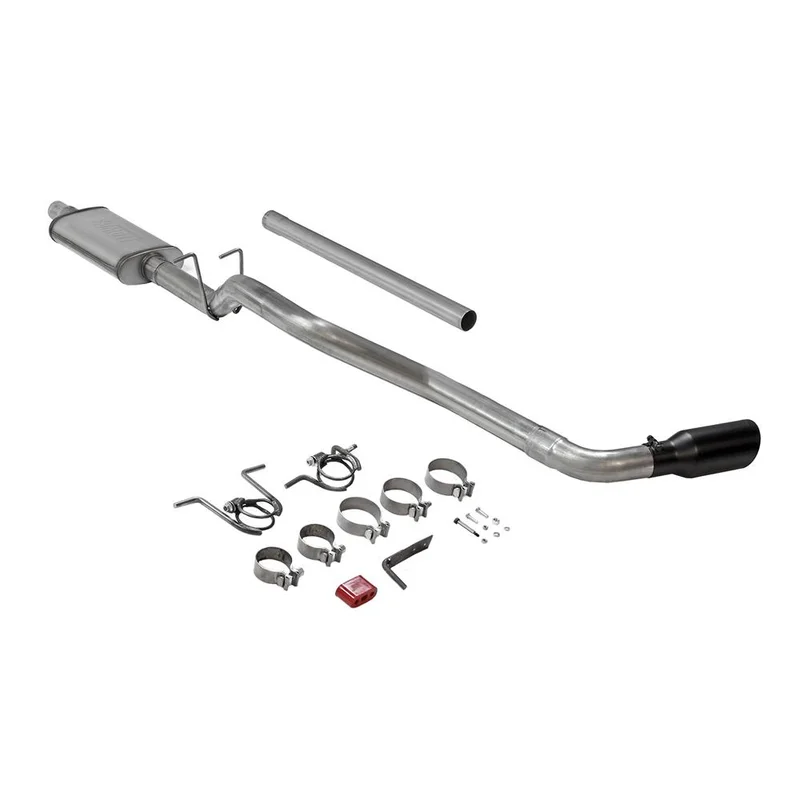

Flowmaster Flow FX Cat-Back Exhaust SystemThis Flow FX cat-back exhaust system is designed for the 1994-2001 Dodge Ram 1500 with the 3.9L, 5.2L, and 5.9L engines, as well as the 1994-2002 2500/3500 models with the 5.9L engine. Features include 409 stainless steel construction for added durability and 16-gauge 3.0-inch mandrel bent tubing for free unrestricted flow. The compact oval ”straight-through” Flow FX performance muffler delivers a moderate yet deep and powerful sound while the interior sound is kept very mild. The system uses the factory hanger locations and is finished off with a 4.50-inch black ceramic-coated 304 stainless steel tip embossed with the Flowmaster name. The kit includes detailed instructions and all hardware necessary for a quick and easy installation you can do at home. Backed by Flowmaster’s Lifetime Limited Warranty.

Catalytic Converter Included: No

Catalytic Converter Quantity: 0

Clamping Type: Flat Band

Clamps Included: Yes

Exhaust Series:Flow FX

Exhaust Tip Color: Black

Exhaust Tip Connection: Clamp-On

Exhaust Tip Cut: Angled

Exhaust Tip Diameter: 4.50″

Exhaust Tip Edge: Rolled Edge

Exhaust Tip Finish: Black Ceramic Coating

Exhaust Tip Intercooled: No

Exhaust Tip Length: 11.00″

Exhaust Tip Material: 304 Stainless Steel

Exhaust Tip Quantity: 1

Exhaust Tip Resonated: No

Exhaust Tip Shape: Round

Exhaust Tip Wall: Single Wall

Exit Style: Single Out Side

Finish: Natural

Gasket Or Seal Included: No

Grade Type: Performance

Hangers Included: Yes

Heat Shield Included: No

Inlet Type: Clamp-On

Main Piping Diameter: 3.00″

Mount Type: Uses Factory Hangers

Mounting Bracket Included: Yes

Muffler Body Height: 4.00 Inch

Muffler Body Length: 18.00 Inch

Muffler Body Material: 409 Stainless Steel

Muffler Body Shape: Oval

Muffler Body Width: 9.00 Inch

Muffler Color: Silver

Muffler Finish: Natural

Muffler Flanged Inlet: No

Muffler Flanged Outlet: No

Muffler Included: Yes

Muffler Inlet Connection: Slip-Fit

Muffler Inlet Inside Diameter: 3.00 Inch

Muffler Inlet Location: Center

Muffler Inlet Outside Diameter: 3.13 Inch

Muffler Outlet Connection: Slip-Fit

Muffler Outlet Diameter: 3.00 Inch

Muffler Outlet Quantity: 1

Muffler Overall Length: 24.00 Inch

Muffler Part Number: Kit Only

Muffler Quantity: 1

Muffler Series:Flow FX

Muffler Type: Absorption

Pipe Color: Silver

Pipe Material: 409 Stainless Steel

Sound Level: Moderate

Spring Bolt Kit Included: No

Tail Pipe Outlet Outside Diameter: 3.00 Inch

Tail Pipe Quantity: 1

Tail Pipe Quantity: Single

Tail Pipe Tapered Outlet: No

Tip Logo: Embossed

Type: Cat-Back

Valve Included: No

Valve Type: Not Applicable
