Description

Flowmaster Flow FX Cat-Back Exhaust SystemThis Flowmaster® Flow FX® cat-back exhaust system for the 2017-2025 Ford F250/F350 Super Duty trucks with the 6.2, 6.8 or 7.3-liter engine is manufactured using durable 409 stainless steel throughout and features 3.5 to dual 3.0-inch mandrel bent pipes for better exhaust gas flow. A Flow FX ”straight-through” muffler is used for an aggressive to moderate sound level and maximum performance. Maximum increases on the dyno revealed +11 hp and +15 lb-ft at the rear wheels. This system exits out both sides, behind the rear wheels with 4.50-inch black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home.Backed by Flowmaster’s Lifetime Limited Warranty.2017-2025 Ford F250/F350 Super Duty with 6.2L/6.8L/7.3L-Liter engines. Fits 2 4-wheel drive, All Wheelbases.

Catalytic Converter Included: No

Catalytic Converter Quantity: 0

Clamping Type: Flat Band

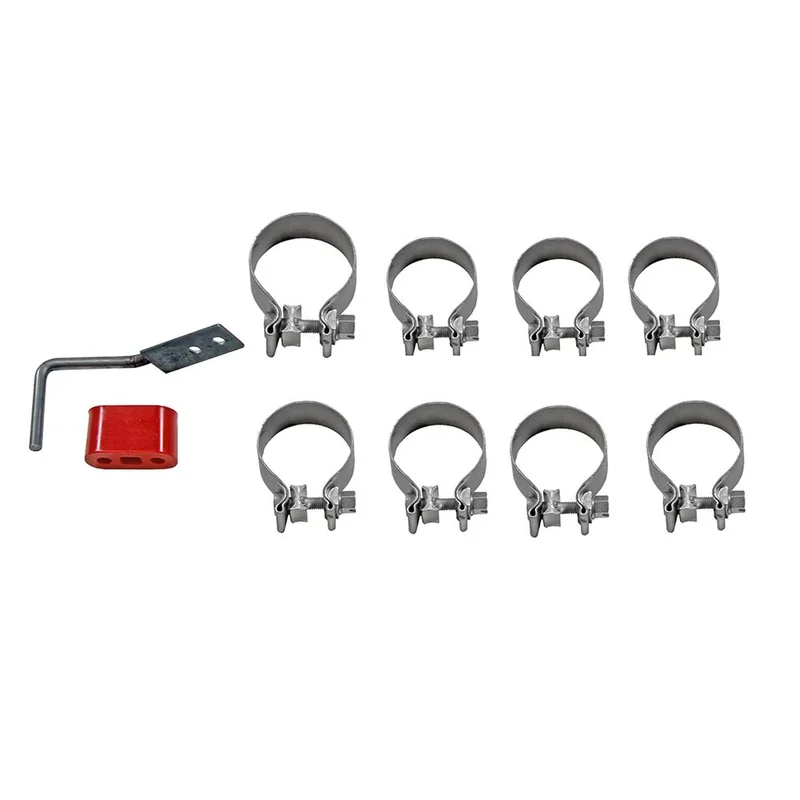

Clamps Included: Yes

Exhaust Series:Flow FX

Exhaust Tip Color: Black

Exhaust Tip Connection: Clamp-On

Exhaust Tip Cut: Angled

Exhaust Tip Diameter: 4.50″

Exhaust Tip Edge: Rolled Edge

Exhaust Tip Finish: Black Ceramic Coating

Exhaust Tip Intercooled: No

Exhaust Tip Length: 11.00″

Exhaust Tip Material: 304 Stainless Steel

Exhaust Tip Quantity: 2

Exhaust Tip Resonated: No

Exhaust Tip Shape: Round

Exhaust Tip Wall: Single Wall

Exit Style: Dual Out Side

Finish: Natural

Gasket Or Seal Included: No

Grade Type: Performance

Hangers Included: Yes

Inlet Type: Clamp-On

Main Piping Diameter: 3.00″

Mount Type: Uses Factory Hangers

Mounting Bracket Included: Yes

Muffler Body Height: 5.00 Inch

Muffler Body Length: 18.00 Inch

Muffler Body Material: 409 Stainless Steel

Muffler Body Shape: Oval

Muffler Body Width: 10.00 Inch

Muffler Color: Silver

Muffler Finish: Natural

Muffler Flanged Inlet: No

Muffler Flanged Outlet: No

Muffler Included: Yes

Muffler Inlet Connection: Slip-Fit

Muffler Inlet Inside Diameter: 3.50 Inch

Muffler Inlet Location: Center

Muffler Inlet Outside Diameter: 3.63 Inch

Muffler Outlet Connection: Slip-Fit

Muffler Outlet Diameter: 3.00 Inch

Muffler Outlet Location: Dual

Muffler Outlet Quantity: 2

Muffler Overall Length: 24.00 Inch

Muffler Part Number: Kit Only

Muffler Quantity: 1

Muffler Series:Flow FX

Muffler Type: Absorption

Pipe Color: Silver

Pipe Material: 409 Stainless Steel

Sound Level: Aggressive / Moderate

Spring Bolt Kit Included: No

Tail Pipe Outlet Outside Diameter: 3.50 Inch

Tail Pipe Quantity: 2

Tail Pipe Quantity: Dual

Tail Pipe Tapered Outlet: No

Tip Logo: Embossed

Type: Cat-Back

Valve Included: No

Valve Type: Not Applicable
