Description

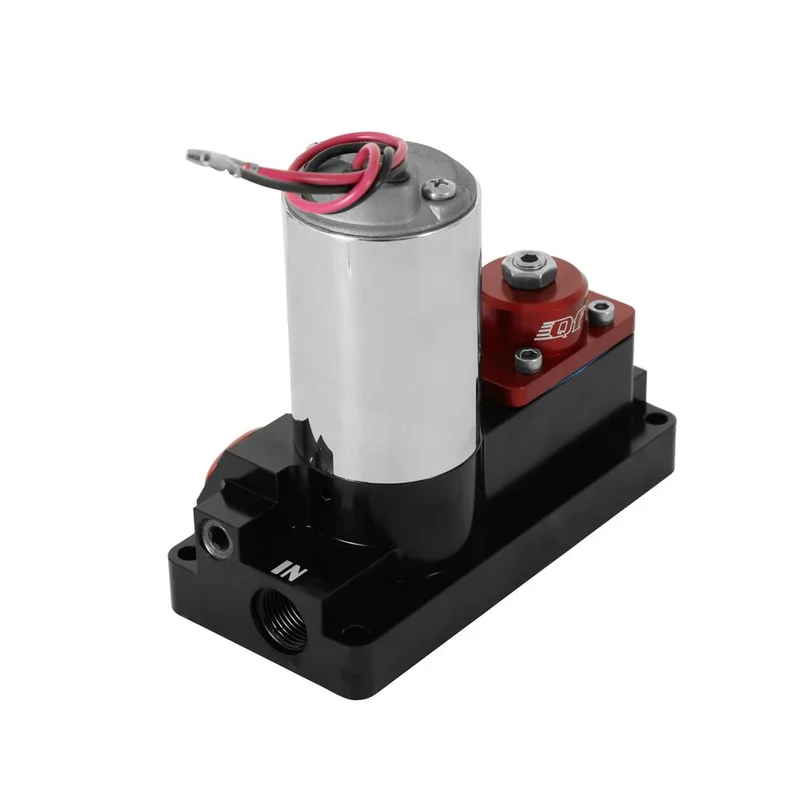

175 GPH Billet Electric Fuel Pump designed for drag racing. Features #8 AN fuel inlet and outlets, built-in fuel pressure gauge port, and internal/external adjustable bypass. Fuel pump can be used either way, simply use the provided plug to switch bypass modes. Mounting bracket, hardware, and detailed instructions are included.*Fuel pressure gauge and fitting are not included175 GPH Bypass Billet Electric Fuel Pumpâ?¢ 175 GPH electric fuel pumpâ?¢ Supports up to 750 HP @ 18 PSIâ?¢ Constructed of billet aluminum for added durability and increased fuel controlâ?¢ Features #8 AN O-ring inlet and outlet portsâ?¢ Built-in fuel pressure gauge portâ?¢ Internal and external adjustable bypass capability (Plug provided to switch bypass modes)â?¢ Mounting bracket, hardware, and detailed instructions included

Average Flow Rating: 175 GPH

Color: Silver

Finish: Zinc

Free Flow GPH: 175

Fuel Delivery Type: Carburetor

Fuel Sending Unit Included: No

Fuel Type: Gasoline / Ethanol / Methanol / E85

Gasket Or Seal Included: No

Grade Type: Performance

Inlet Type: 8 AN ORB

Internal Or External: External

Maximum Pressure: 18 PS

Mounting Bracket Included: Yes

Mounting Hardware Included: No

Negative Ground: Yes

Outlet Type: 8 AN ORB

Regulator Included: Yes

Strainer Included: No

Terminal Quantity: 2

Universal Or Specific Fit: Universal

Wiring Harness Included: No
