Description

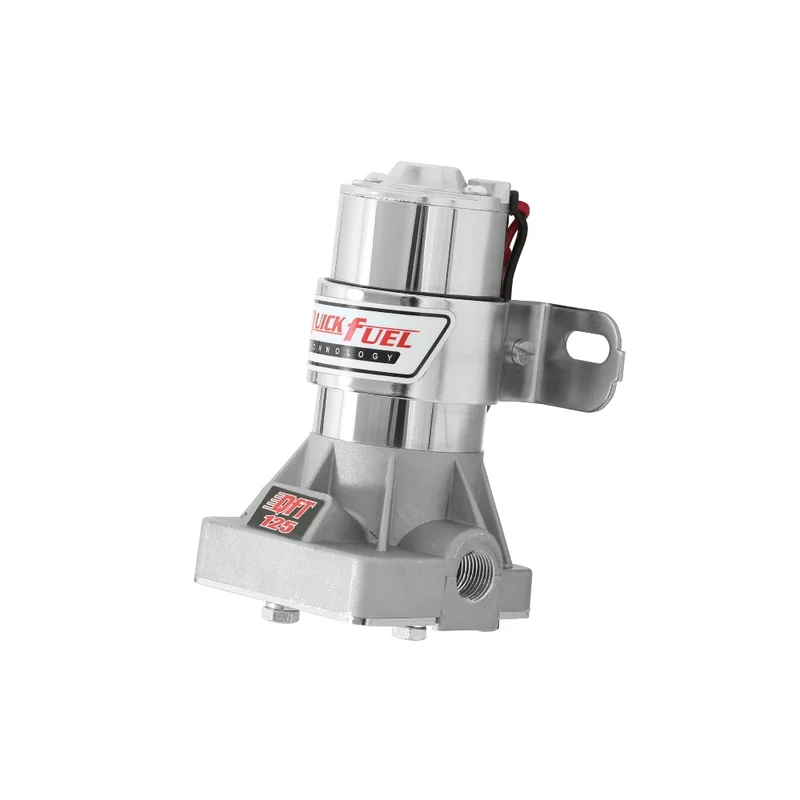

QFT’s electric fuel pumps are perfect for combinations that are neither stock nor all out race cars. Available in 125-, 155-, and 175 GPH models, these pumps flow more than enough fuel to support between 400-750 hp. These pumps draw just four amps of current and are capable of producing 14 psi of maximum pressure (30-125-1, 30-155), and 18 psi of maximum pressure (30-175). All mounting hardware and brackets are included.12 Volt125 GPH Flow RateConstructed of Lightweight Steel and Aluminum14 PSI Maximum PressureFeatures 3/8″ NPT Inlets and OutletsExternally Accessible Pressure Relief ValveDraws 4 Amps or Less at Full LoadDesigned for Carbureted Applications OnlyMounting Bracket, Hardware, and Instructions Included

Average Flow Rating: 125 GPH

Color: Silver

Finish: Zinc

Free Flow GPH: 125

Fuel Delivery Type: Carburetor

Fuel Sending Unit Included: No

Fuel Type: Gasoline

Gasket Or Seal Included: No

Grade Type: Performance

Inlet Thread Diameter: 3/8″

Inlet Type: NPT

Internal Or External: External

Maximum Amperage Draw: 4 68

Maximum Pressure: 14 PS

Mounting Bracket Included: Yes

Mounting Hardware Included: No

Negative Ground: Yes

Outlet Quantity: 1

Outlet Thread Diameter: 3/8 Inch

Outlet Type: NPT

Regulator Included: No

Strainer Included: No

Terminal Quantity: 2

Universal Or Specific Fit: Universal

Wiring Harness Included: No
