Description

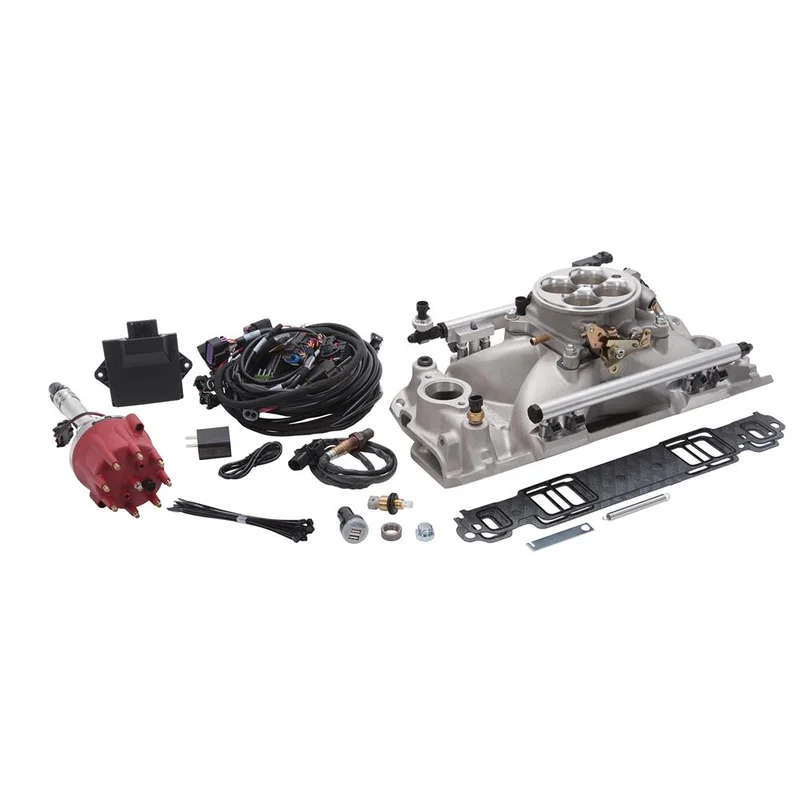

Edelbrock Pro-Flo 4 EFI System for 1986 Earlier Small-Block Chevy engines. The EFI system comes with a 4150-Style satin finish single plane intake manifold and 42 Lb/Hr injectors capable of 675 HP.The Edelbrock Pro-Flo 4 EFI Kit #35690 for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectorsfuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.

Bore Diameter: 1.75″

Distributor Cap Included: Yes

Finish: Satin

Flange Type: 4150

Fuel Injector Type: 42 lb/hr

Fuel Pressure Port: 1/8-27 NPT

Gasket Or Seal Included: Yes

Idle Air Control Motor Included: Yes

Manifold Height: 4.58″

Maximum Horsepower: 675

Quantity: Kit

System Type: Traditional 4150-Style Kit

Throttle Body Type: 4 Barrel

Wire Harness Included: Yes

Wiring Harness Included: Yes
