Description

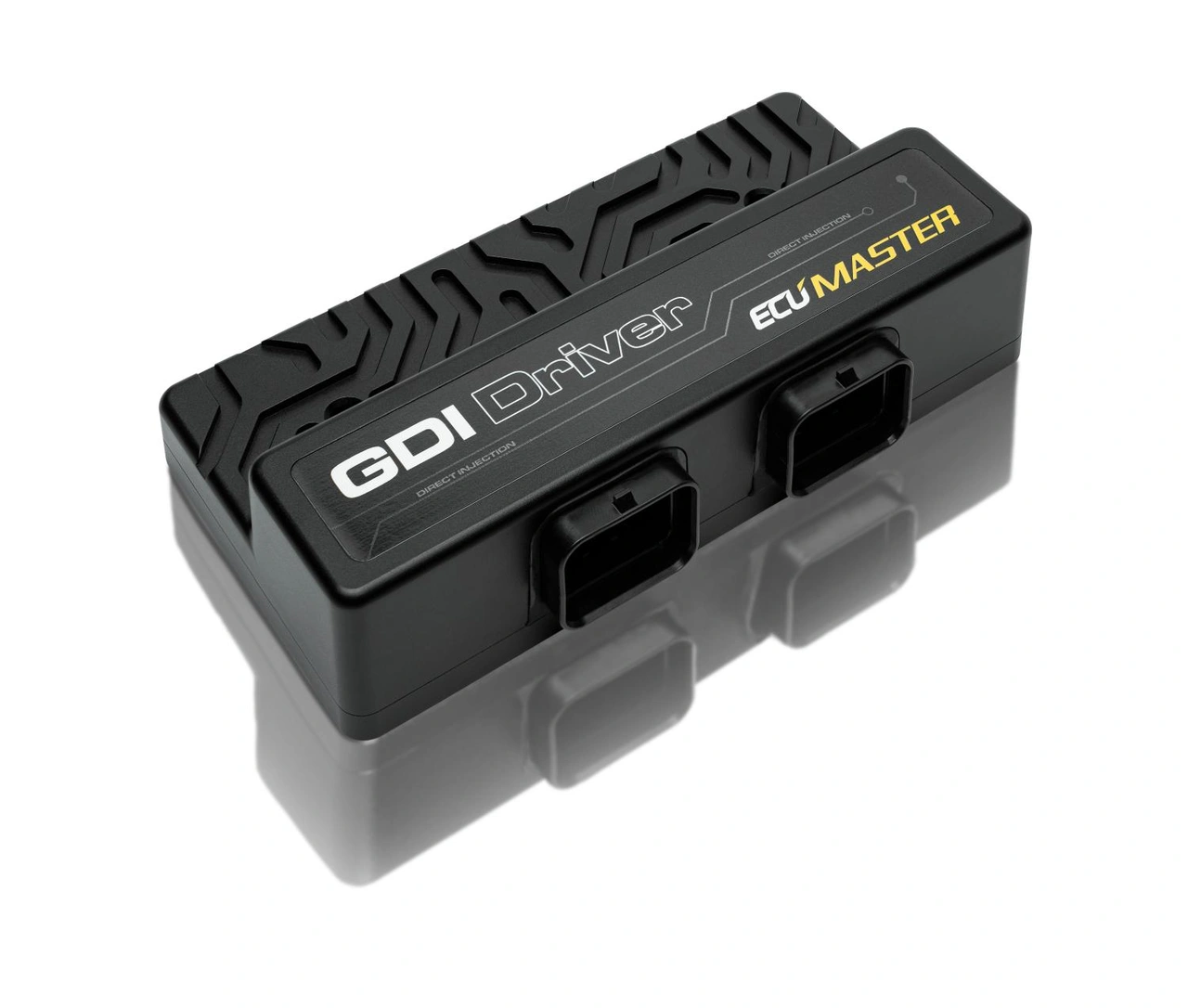

ECU master GDI Driver

• Supports up to 8 peak-and-hold GDI Injectors (70V Solenoid Valve Type)

  8x Low-side outputs

  4x High-side outputs

  Current measurement

• Supports up to 2 high-pressure pump valves with peak-and-hold2 Pairs of low-side + high-side outputs

  Current measurement

  Customizable peak and hold currents and timing

• 4x Configurable SENT buses
• 8x Analog outputs (0-5V) for SENT signal conversion
• 1x CAN bus for setup, diagnostics, and EMU PRO communication
• 8x Digital inputs to manage injector control via EMU PRO outputs
• 2x Digital inputs for high-pressure pump control
• AMP SUPERSEAL 1.0 connectors

EMU PRO Strategy:

• Control for up to 2 high-pressure fuel rails
• Customizable injection timing
• Supports up to 16 injectors (8 direct through the GDI Driver, 8 port injectors directly via EMU PRO)
• Configurable fuel injection split between port and direct injection
• Compatibility with various fuel pump cam types
• Supports multiple high-pressure pumps
• Adjustable rail pressure target
