Description

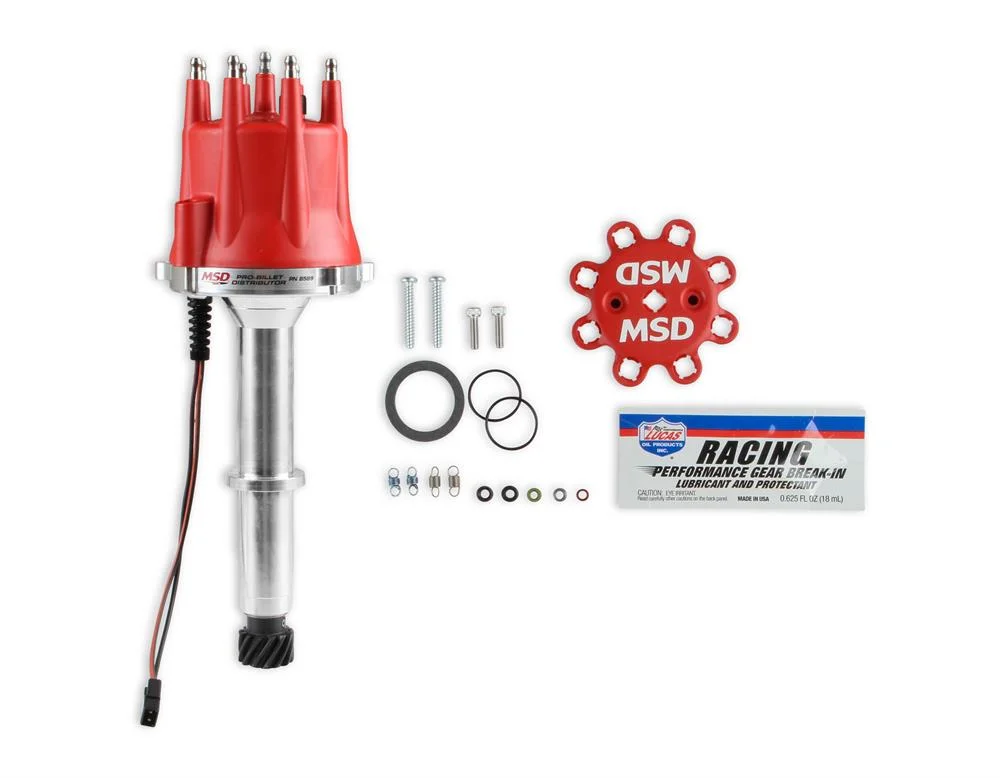

This is our most Australian popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition.The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500″ steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD’s adjustable mechanical advance assembly.Different springs and stop bushings are supplied so you can tune an advance curve to match your application.Must be used with an MSD 6, 7 or 8-series ignition.Nylon pads ensure smooth operation of the advance weightsCNC machined billet aluminum housing and billet aluminum baseMust be used with an MSD Ignition ControlSpecial oil tract improves lubrication to the distributor and cam gearSupplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)Will not accept a vacuum advance canisterAdvance weight pins are staked and tig welded to the plateAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeO-ring seals can be added to modified blocks to improve oil pressure controlEasy-to-adjust mechanical advance with supplied springs and stop bushingsMechanical advance assembly can be locked out for crank trigger systemsPolished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
