Description

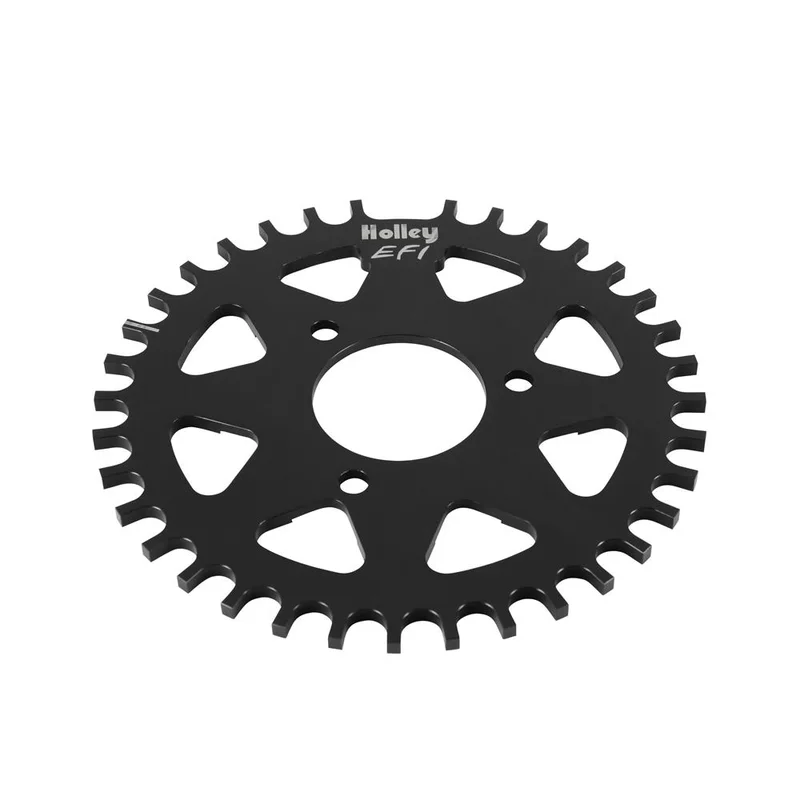

36-1 Tooth Crank Trigger System for Small Block Chevy8â? diameter, 1/4â? thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance striking good looks.Crank wheel centers off of the balancerâ??s hub, eliminating the need for a centering ringAll billet, 6061-T6 aluminum sensor mounting brackets with â??bright-dippedâ? black anodized finish Laser etched Holley EFI logoCustom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustmentAll Grade 8 Mil. Spec mounting hardwareHolley’s EFI Crank Trigger Kit is engineered to provide an accurate crank speed position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD ”style” Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper ”style” balancer up to 7-1/4″ in diameter.

Bracket Color: Black

Bracket Material: Aluminum

Color: Black

Diameter: 8″, 8″

Finish: Black Zinc Oxide

Grade Type: Performance

Make: Chevrolet

Pickup Included: Yes

Sensor Dimensions: 12mm x 50mm

Sensor Type: Hall Effect

Trigger Type: 36-1

Trigger Wheel Color: Black

Trigger Wheel Material: Steel

Trigger Wheel Mount Hole Quantity: 3

Trigger Wheel Outside Diameter: 8 Inch

Trigger Wheel Thickness: 1/4 Inch

Wheel Width: 1/4″
