Description

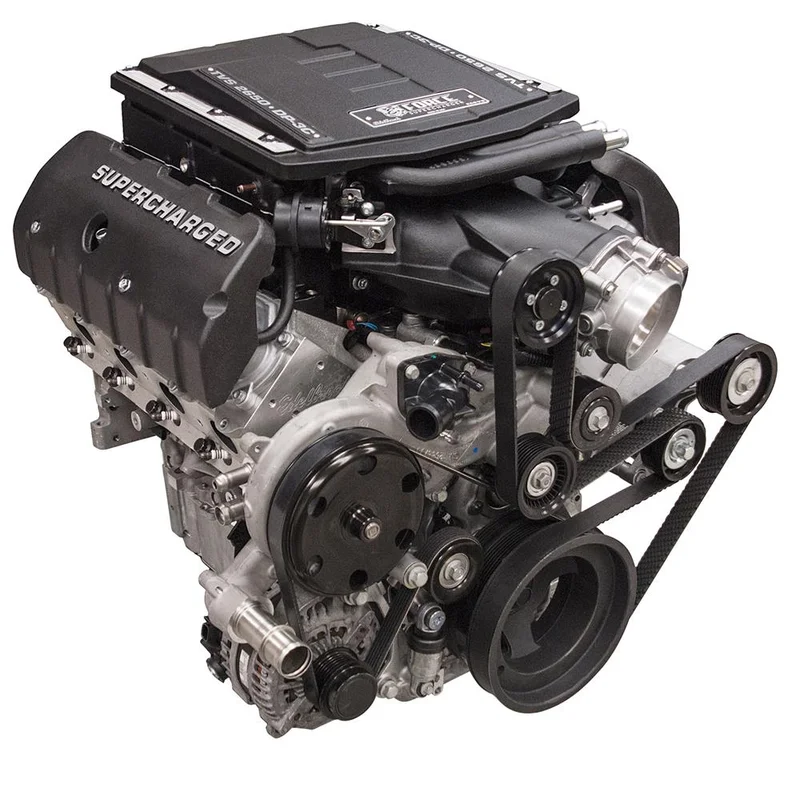

A complete 416 c.i.d. supercharged LT engine that produces 851 horsepower and 780 ft-lbs. of torqueEdelbrock LT1 Supercharged LT1 crate engine part #46756 produces an astounding 851 horsepower and 780 ft-lbs. of torque on 91 octane pump gas. The foundation of this engine is a brand new GM LT1 Gen V aluminum block with a forged and balanced Manley crankshaftforged Manley H-Beam connecting rods and Manley forged aluminum pistons. The 10.5:1 compression ratio allows for safe and reliable supercharged performance on 91 octane pump gas. Sitting on top is an Edelbrock supercharger system with DP-3C intercooler and Eaton TVS R2650 rotors. Also included are the essential supercharger kit componentssuch as the electric intercooler water pumpintercooler plumbingintercooler recovery tankfuel railsfuel injectorsmass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a driver’s side throttle body orientation for ease of intake routing and Camaro ZL1/ CTS-V LT4 belt offset. Pair with universal heat exchangers for a complete installation. Crankshaft: Manley Forged 4340 Pistons: Manley Forged Aluminum – 20cc Rods: Manley Forged H-Beam Camshafts: 243 Deg /254 Deg.660/.651114 LSA Rocker Arms: GM LT1 Gen V Induction: R2650 Supercharger Cylinder Heads: Edelbrock Performer RPM #77119 Warranty: 2-year / Unlimited mileage Engine Specifications: Finish: Black powder coated Displacement: 416 c.i.d. Bore: 4.065in Stroke: 4.000in Horsepower: 851 hp Torque: 780 ft-lbs. Compression: 10.5:1 Block: GM LT1 Gen V Alum.

Air Cleaner Type: Conical

Alternator Included: No

Calibration: Yes

Camshaft Type: 243deg/254deg.660/.651114 LSA

Carburetor Choke Type: N/A

Carburetor Type: Not Included

Compression Ratio: 10.6: 1

Construction Type: Assembled

Crankshaft Material: Forged Steel

Cylinder Head Material: Aluminum

Cylinder Head Type: Performer RPM

Displacement: 416 CID

Distributor Included: No

ECU Included: No

Engine Block Material: Cast Iron

Flywheel Included: No

Grade Type: Performance

Hardware Included: Yes

Harmonic Balancer Included: Yes

Horsepower: 851 HJ

Ignition Coil Included: Yes

Induction Type: Supercharged

Intake Manifold Type: EFI

Main Bearing Cap Bolt Quantity: 4-Bolt

Manifold Material: N/A

Oil Filter Included: Yes

Oil Pan Included: Yes

Outside Pulley Diameter: 3.25 Inch

Piston Type: Forged Aluminum

Plug Wire and Boot Included: Yes

Pulley Belt Width: 8-Rib

Quantity: Sold Individually

Rear Main Seal Type: 1-Piece

Rocker Arm Ratio: GM OEM

Rocker Arm Type: LT1

Rotor Type: Eaton TVS 2650Black Powder Coated

Spark Plugs Included: No

Throttle Body Included: Yes

Timing Cover Included: Yes

Torque: 779

Type: GM LT1 Gen V

Universal Or Specific Fit: Specific Fit

Valve Cover Included: Yes

Valve Cover Material: Cast Aluminum

Valve Cover Type: OEMBlack Powder Coated

Water Pump Included: YesStandard

Wire Harness Included: Yes
