Description

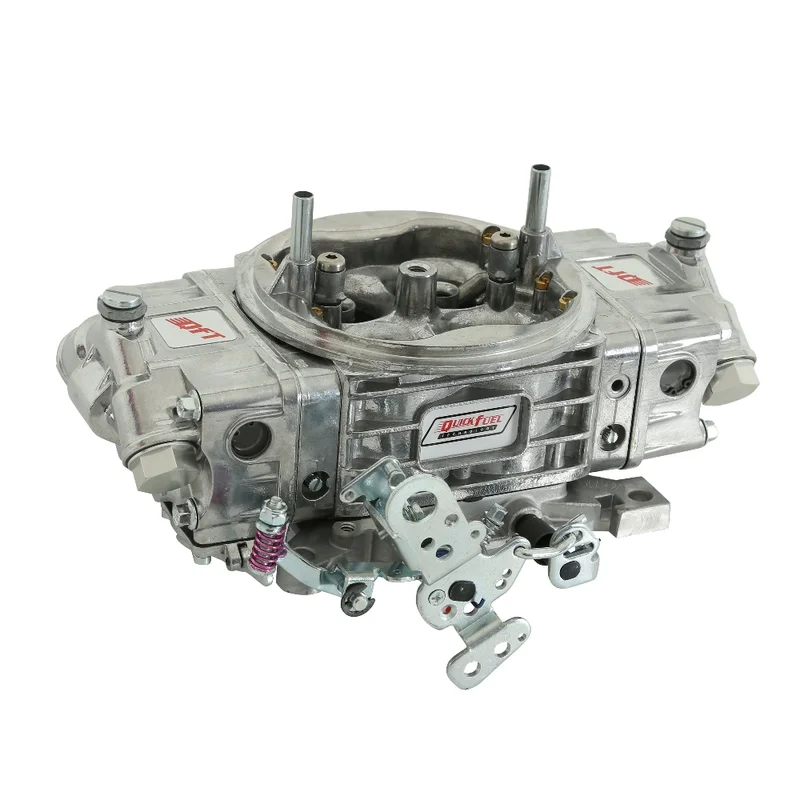

Quick Fuel Technology’s new Street-Q carburetor is intended to deliver legendary Q-Series performance to hardcore street enthusiasts at a reduced price. The major differences between the Street-Q and the race-bred Q-Series is the substitution of cast metering blocks and a cast throttle body in place of fully-machined billet components. All of the critical functionality is retained – 2-circuit metering, downleg boosters, changeable idle and high-speed air bleeds and 4-corner idle. A universal throttle lever design accommodates Ford A/T kickdowns, 700-R4 bracket mounting holes and the ability to mount brackets for Chrysler vehicles. Available sizes include 650, 750, 850, and 950cfm for mechanical secondary models and a 750 vacuum secondary is also offered.750 CFM – 4150 – Mechanical Secondaries – Shiny – Gasolineâ?¢Lightweight die-cast aluminum componentsâ?¢Changeable idle and high-speed air bleedsâ?¢Vacuum mechanical secondary modelsâ?¢2-circuit metering – 4-Corner idle systemâ?¢Downleg boostersâ?¢Universal throttle lever design fits Ford A/T Kickdown,700-R4 mounting holes – accepts brackets for Chrysler vehicles

Barrels: 4

Billet Color: Diecast-No Billet

Body Color:Polished Aluminum

Body Finish: Polished

Body Material: Aluminum

Booster: Down Leg

Carburetor Use: Performance and Race

CFM Rating:750

Choke Type: None

Choke: None

Circuit Count:2

Color:Polished Aluminum

Condition: New

Cubic Feet Per Minute Rating: 750

Finish: Shiny

Flange Shape: Square

Flange Type: Square/4150

Fuel System: Carbureted

Fuel: Gasoline

Gasket Or Seal Included: Yes

Grade Type: Performance

Linkage Attached: Yes

Marine Approved: No

Material: Aluminum

Model: Street-Q Series

Primary Main Jet Size:74

Primary Power Valve: 45

Primary Pump Nozzle Size: 33

Secondary Barrel Type:Mechanical

Secondary Main Jet Size:84

Supercharger Compatible:No

Throttle Bore Diameter:1-11/16 inch
